FOB Price: US $23,600 - 36,000 / Set | Get Latest Price
Min.Order Quantity: 1 Set/Sets
Supply Ability: 10 Set/Sets per Month
Port: Qingdao, Tianjin, Shanghai
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal, credit card, cash
Quick Details
Condition: New
Power Type: Electric
Place of Origin: Henan, China (Mainland)
Brand Name: Jianxin
Model Number: ZWB series
Power(W): 70-95 kw
Dimension(L*W*H): 13m*8m*8.5m
Weight: 12T-14T
Certification: CE ISO
Warranty: 12 Months
After-sales Service Provided: Engineers available to service machinery overseas
Product name: mobile stabilized soil mixing station
Output: 300T/H / 400T/H
Form: Non-liner twin shaft forced mixing
Max aggregate diameter: 65mm
Host power: 2*22kw / 2*30kw
Hopper capacity: 2*12m3 / 2*7m3+1*12m3
Area occupy: 13*8m / 13.5*8m
Metering method: Frequency control, and Automatic volume measurement
Accuracy(Electronic measurement):Pellets≤2%, powder≤1%, water≤1.5%
Accuracy(Volume measurement):Pellets≤3%, powder≤2%, water≤2%
Packaging & Delivery
Packaging Details: 1, For full container load, main body with plastic film surrounded or in nude, key parts and spare parts in strong export wooden or iron case. 2, For less than container load, main body and all spare parts in strong export wooden or iron case.
Delivery Detail: For 1 plant, Shipped in 25 days after payment

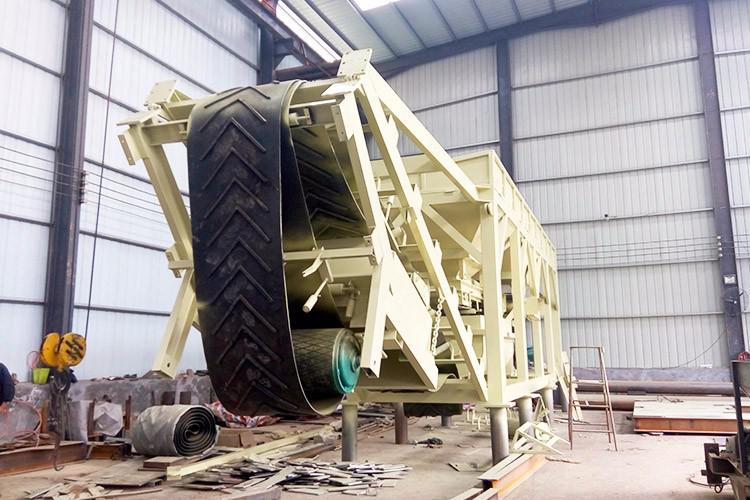

Mobile modular type stabilized soil mixing plant has compact and reasonable structure, combines control system, weighing system, mixing system and discharging system together. Realize convenient moving by trailer based on easy drawing and folding.
After weighing, aggregates go directly into the mixer which is mounted under the batching hopper, then after mixing, finished products will be transported to the discharge port by belt conveyor.
What are the features of mobile modular Stabilized Soil Mixing Plant?
1, Accurate, high efficiency, automatic.
2, Movable, small area occupy. Very convenient moving.
