FOB Price: US $2,400 - 5,200 / Set
Min.Order Quantity: 1 Set/Sets
Supply Ability: 100 Set/Sets per Month
Port: Qingdao, Tianjin, Shanghai
Payment Terms: L/C,T/T,Western Union,MoneyGram,Credit card, Paypal, Cash
Condition: New
Place of Origin: Henan, China (Mainland)
Brand Name: Jianxin
Model Number: JS500
Motor Power: 15 Kw
Mixing Power: 18.5 Kw
Charging Capacity: 800L
Reclaiming capacity: 500L
Speed of Mixing Drum: 31 r/min
Water Supply Mode: Water Pump
Working Cycle Period: 60s
Discharge Way: Automatic
Outline Dimension: 4461*3050*4180mm
After-sales Service Provided: Engineers available to service machinery overseas

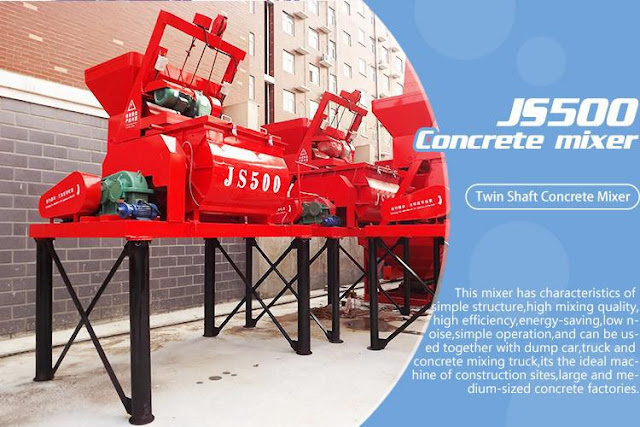

Product name: twin shaft automatic electric js500 mini concrete mixer
Output: 25 cbm/h
Lifting power: 5.5kw
Mixing speed: 31 r/min
Mixing blade quantity: 2*7
concrete mixer type: forcing type twin horizontal shafts
Max. aggregate size: 50mm
Color: red or as request
Water pump power: 1.1kw
Application: all industrial and civil construction projects
Packaging & Delivery
Packaging Details: 1, For full container load, main body with plastic film surrounded or in nude, key parts and spare parts in strong export wooden or iron case. 2, For less than container load, main body and all spare parts in strong export wooden or iron case.
Delivery Detail: Shipped in 7 days after payment
Introduction of twin shaft automatic electric js500 mini concrete mixer
Combined with domestic and overseas advanced techonology, JS series concrete mixer could work individually or to be simple concrete mixing plant with PLD series batching plant, also could provide matching host for mixing plant. So it is a widely used high efficiency model. JS series twin shaft automatic electric js500 mini concrete mixer is reasonably and newly designed, convenient for use and maintanance. Also can be customized according to customers’ personalized request. JS series twin shaft automatic electric js500 mini concrete mixer has wide applications, such as all kinds of factory for prefabrication, roads, bridges, irrigation works, wharf and other industrial or civil construction projects. Could mix hard concrete, plastic concrete, fluidity concrete, light orthopaedic concrete and all kinds of mortar.
What's the working principle of twin shaft automatic electric js500 mini concrete mixer?
•The break motor drives rotation of the coiling block, when the hopper climbs up to a certain height by loading track, the hopper door will open automaticlly, and raw materials will be put into the stirring pot.
•There are limit switches on loading shelf to assure the accurate position of the hopper. Js series concrete mixer has 2 limit switches on upper limit positon, seperately offers positioning and protection for the hopper. Also there is 1 limit switch on lower limit position.
•The loading shelf of JS series concrete mixer can be folded for transportation convenience.
Details of twin shaft automatic electric js500 mini concrete mixer
•Adopts forcing type twin horizontal shafts, with high mixing quality and working efficiency for concrete of various ratios.
•The forced water supply system sprays equably and has washing function for the mixing system.
•Adopts the electronic weighing syetem to measure all the aggregate cement water liquid additive.
•The electrical system adopts imported famous brand parts and has credible performance.
•Powdery materials are processed in hermetic condition in all procedures including loading, burdening, measuring, charging, mixing and discharging. There is a high quality dust remover in the main mixing pot, also the mixing pot and belt conveyor are sealed. Vastly reduced dust and noise pollution.
•Js series twin shaft automatic electric js500 mini concrete mixer has double mixing blades quantity compared with common twin shaft horizontal mixers. Outter ring pushes material to be boiling status, while inner ring shovel shears in radial direction, realize violent and sufficient mixing for material in a short time.
•Electrical opening style or pneumatic discharging, avoid the shortcoming of raw material remaining.
•Optimal designed hopper, easy to clean, better charging ability.
•Reasonably designed with elegant appearance, quick assembling and disassembling, convenient transportation.
